Add To InquiryModular Valve - MCB
shared:
| Model | Pressure (kgf/cm²) | Flow (L/min) | Pressure Addition Range (kgf/cm²) | Weight (kg) |
| MCB-02- ＊ | 210 | 40 |
1:7-70 2:10-210 |
1.1 |
-
Series definition
MCB : Stacked one way valve -
Nominal daimeter

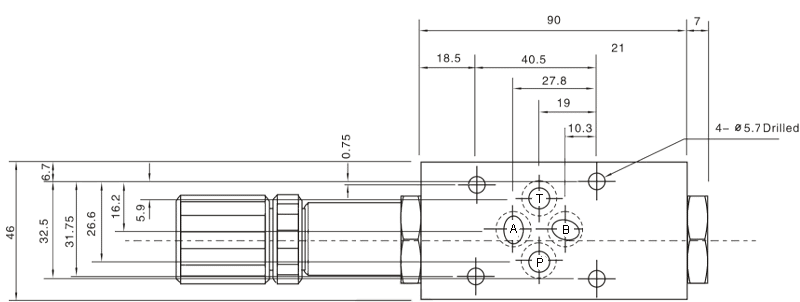

02：1/4” ( Maximum working pressure 210 kg/cm² Maximum flow 40 L/min )

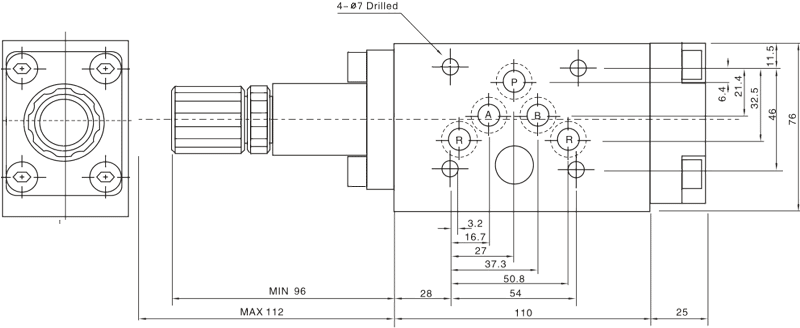

03：3/8” ( Maximum working pressure 210 kg/cm² Maximum flow 80 L/min ) -
Work port
A : A port
B : B port -
Spring-open pressure
02 1 : 3 ~ 35 kg/cm²
2 : 8 ~ 70 kg/cm²
03 1 : 8 ~ 70 kg/cm²
2 : 10 ~ 210 kg/cm²
