Add To InquiryVariable Displacement Vane Pump - SF
- It has automatic flow adjustment and compensation functions under set pressure, as well as lower power losses and lower heat than quantitative vane pumps, and is an energy-saving high-efficiency vane pump, as well as the optimal choice for system designing engineers on high-efficiency circuits.
- It operates stably and quietly, and particularly meets the requirements of machine tools and indoor environments.
- It is internally equipped with a pressure adjustment mechanism, does not need a pressure regulating valve in the system, and is suitable for direct motors, and easy to assemble.
- With many different pressure and flow ranges, it can be used for arbitrary selection.
shared:
| Model | Max.operating (kg/cm²) |
Output flow (AT3.5kg/cm²) 1800r.p.m (l/min) |
Ports Size | Speed (r.p.m) | Weight (kg) | |||
| Out | In | DR. | Min | Max. | Flangtype | |||
| VP-SF-05 | 70 | 05 | 3/8 | 1/2 | 1/4 | 800 | 1800 | 5 |
| VP-SF-08 | 70 | 08 | 3/8 | 1/2 | 1/4 | 800 | 1800 | 5 |
| VP-SF-12 | 70 | 12 | 3/8 | 1/2 | 1/4 | 800 | 1800 | 5 |
| VP-SF-15 | 70 | 15 | 3/8 | 1/2 | 1/4 | 800 | 1800 | 5 |
| VP-SF-20 | 70 | 20 | 3/8 | 1/2 | 1/4 | 800 | 1800 | 5 |
| Model | Max.operating (kg/cm²) |
Output flow (AT3.5kg/cm²) 1800r.p.m (l/min) |
Ports Size | Speed (r.p.m) | Weight (kg) | |||
| Out | In | DR. | Min | Max. | Flangtype | |||
| VP-SF-30 | 70 | 30 | 1/2 | 3/4 | 1/4 | 800 | 1800 | 9 |
| VP-SF-40 | 70 | 40 | 1/2 | 3/4 | 1/4 | 800 | 1800 | 9 |
- Series definition
-
SF：Single pump
DF：Double pump
DG：Variable pump+PA The gear pump
- Output flow
-
Pressure adjustment range
A：8~20kg/cm²
B：15~35kg/cm²
C：30~55kg/cm²
D：50~70kg/cm²
-
Shaft form
blank：Standard flat key

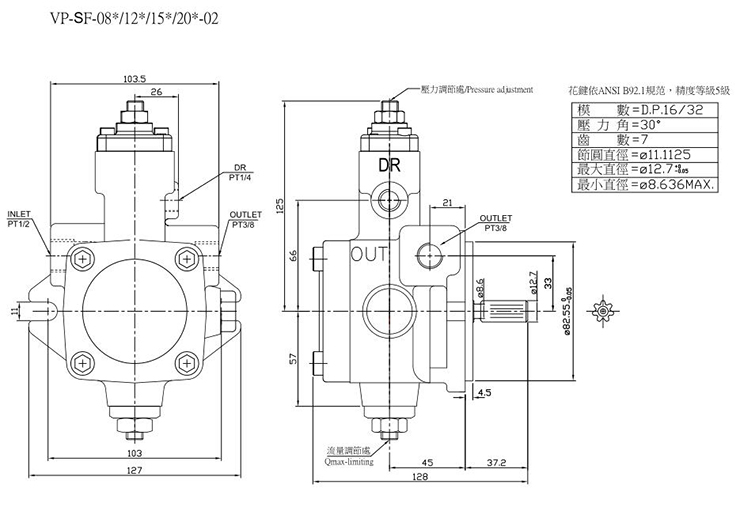

7T：7 spline

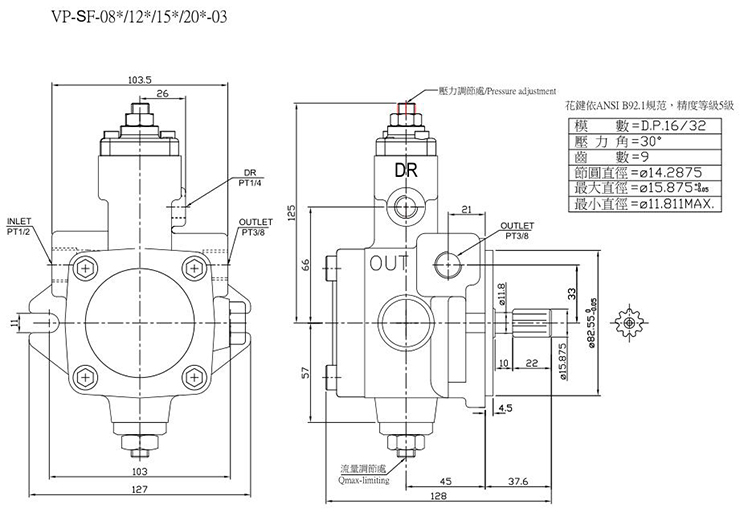

9T：9 spline
- Special specifications
- Design number
VP-SF-20-D
